Product Summary

The 6MBP150RTA060 is an IGBT.

Parametrics

6MBP150RTA060 absolute maximum ratings: (1)DC bus voltage VDC: 0,45V; (2)DC bus voltage (surge)VDC(surge): 0,500V; (3)DC bus voltage (short operating)VSC: 200,400V; (4)Collector-Emitter voltage VCES *1: 0,600V; (5)Input signal current Iin: 3mA; (6)Alarm signal voltage VALM *6: -0.5, Vcc V; (7)Alarm signal current IALM *7: 20mA.

Features

6MBP150RTA060 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built in control circuit.

Diagrams

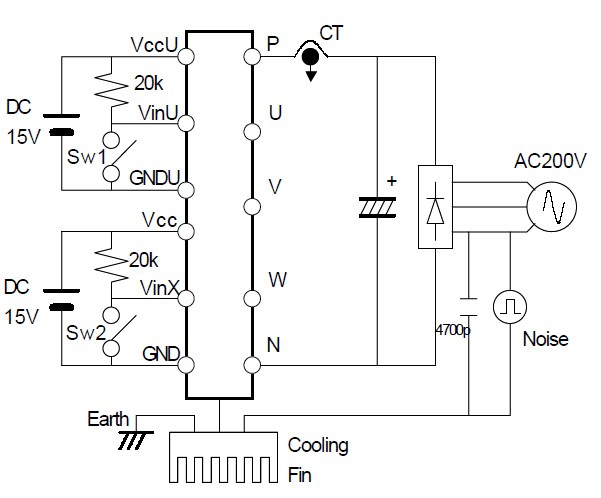

 6MBP150RTA060 pin connection

6MBP 150RA-060
6MBP 150RA-060
