Product Summary

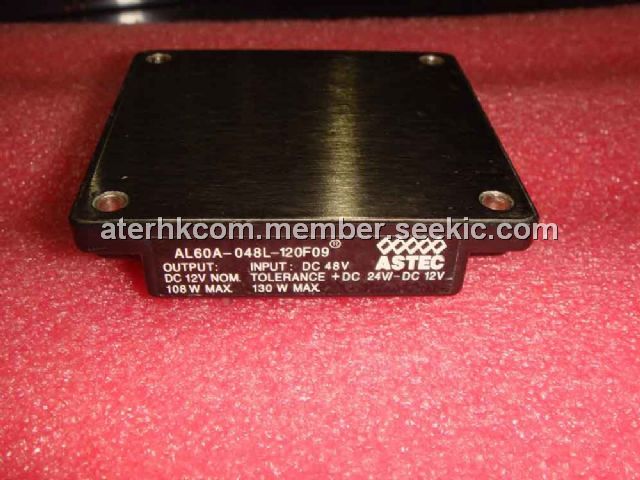

The AL60A-048L-120F09 is a power supplies module from Astec America, Inc.

Parametrics

Absolute maximum ratings: (1)Input Range: 180 to 400 VDC or 36 to 72 VDC; (2)Efficiency: 83% typical (5V @ 20A); 85% typical (12V @ 9A); (3)Load Regulation: 0.2% typical down to no load; (4)Line Regulation: 0.1% typical; (5)Noise/Ripple: 75 mV typical (output below 5V), 2% typical (output 5V and over); (6)Remote sense: Up to 0.5V; (7)Adjust Range: ±10% of nominal output; (8)Transient Response: 4% typical deviation with 250μs recovery (25-75% full load); (9)Current Share Accuracy: 5% typical; (10)Overvoltage Protection: 125% nominal Vo; (11)Current Limit: 110% Io max; (12)Voltage Adjust: 90 to 110% Vo; (13)Enable: TTL compatible (low to enable); (14)(external sync): 3.3 to 5.5Vp-p @ 1MHz ± 10%; (15)Monitor Output: 10 mV/°K (2.73V = 0℃); (16)Current Monitor Output: 0 to 1mA (1mA = 100% Io Rated).

Features

Features: (1)High efficiency- up to 86%; (2)500 KHz fixed frequency; (3)100℃ baseplate operating temperature (with no derating); (4)Low output ripple and noise; (5)Excellent transient response; (6)Safety isolated low voltage control and monitoring; (7)High reliability; (8)Wide input voltage range; (9)Parallelable with accurate current sharing; (10)Adjustable output voltage and current limit; (11)Regulation to zero load; (12)Temperature monitor output.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AL60A-048L-120F09
AL60A-048L-120F09


CONV DC-DC 120W 48VIN 12.0V 9A

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AL60A
AL60A

Other


Data Sheet

Negotiable
AL60A-048L-022F30
AL60A-048L-022F30


CONV DC-DC 120W 48VIN 2.2V 30A

Data Sheet

Negotiable
AL60A-048L-033F25
AL60A-048L-033F25


CONV DC-DC 120W 48VIN 3.3V 25A

Data Sheet

Negotiable
AL60A-048L-050F10
AL60A-048L-050F10


CONV DC-DC 120W 48VIN 5.0V 10A

Data Sheet

Negotiable
AL60A-048L-050F20
AL60A-048L-050F20


CONV DC-DC 120W 48VIN 5.0V 20A

Data Sheet

Negotiable
AL60A-048L-120F06
AL60A-048L-120F06


CONV DC-DC 120W 48VIN 12.0V 6A

Data Sheet

Negotiable
