Product Summary

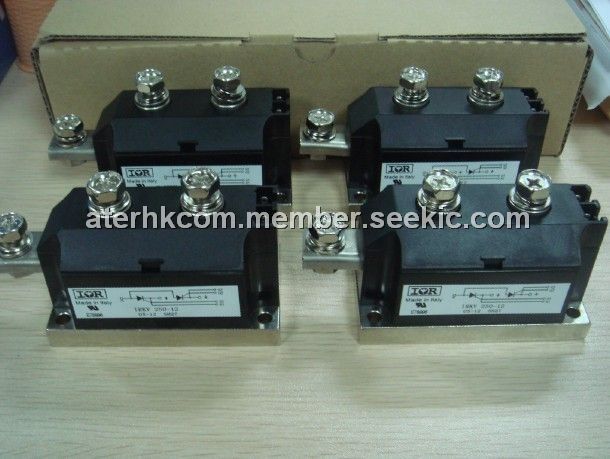

The IRKV250-12 is a MAGN－A－paks module which uses high voltage power thyristor/thyristor and thyristor/diode in seven basic configurations. The IRKV250-12 is electrically isolated from the metal base, allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges or as AC－switches when modules are connected in anti－parallel mode. The IRKV250-12 is intended for general purpose applications such as battery chargers, welders and plating equipment and where high voltage and high current are required (motor drives, U.P.S., etc.).
Parametrics
IRKV250-12 absolute maximum ratings: (1)IT(AV)@ 85℃ : 250 A; (2)IT(RMS): 555 A; (3)VDRM / VRRM: Up to1600 V; (4)TJ range: －40 to 130 ℃.
Features
IRKV250-12 features: (1)High voltage; (2)Electrically isolated base plate; (3)3000 VRMS isolating voltage; (4)Industrial standard package; (5)Simplified mechanical designs, rapid assembly; (6)High surge capability; (7)Large creepage distances.

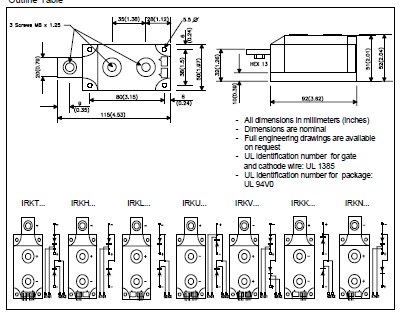

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRKV250-12 |
Vishay Semiconductors |
SCR Modules 1200 Volt 250 Amp |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
IRKV105/12P |
Vishay Semiconductors |
SCR Modules 1200 Volt 105 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKV250-04 |
Vishay Semiconductors |
SCR Modules 400 Volt 250 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKV250-12 |
Vishay Semiconductors |
SCR Modules 1200 Volt 250 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKV41/12P |
Vishay Semiconductors |
SCR Modules 1200 Volt 45 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKV56/04P |
Vishay Semiconductors |
SCR Modules 400 Volt 60 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKV91/12P |
Vishay Semiconductors |
SCR Modules 1200 Volt 95 Amp |
Data Sheet |
Negotiable |
|
||||
