Product Summary

The 2DI150MA-120 is a power transistor module. The applications of it include power switching, A.C motor controls, D.C motor controls, uninterruptible power supply.

Parametrics

2DI150MA-120 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO: 10V; (4)IC: 150A; (5)ICP: 300A; (6)-IC: 150A; (7)IB: 9A; (8)IBP: 18A; (9)PC: one transistor: 690W, two transistors: 1380W; (10)Tj: +150℃; (11)Tstg: -40℃ to +125℃; (12)m: 450g; (13)Viso: 2500V;(14)VCEO(SUS): 450V.

Features

2DI150MA-120 features: (1)high DC current gain; (2)including free wheeling diode; (3)high speed switching; (4)insulated type.

Diagrams

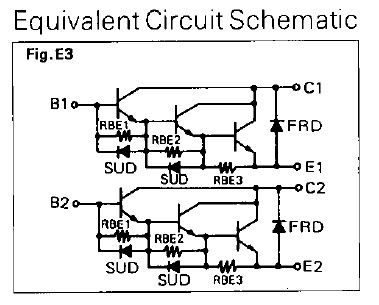

2DI150MA-120 circuit diagram

2DI150M-120
2DI150M-120

Other


Data Sheet

Negotiable
