Product Summary
The MC34063A SOP8 DIP8 ON is a DC–to–DC converter. The MC34063A SOP8 DIP8 ON is a monolithic control circuit containing the primary functions required for DC–to–DC converters. This device consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. The MC34063A SOP8 DIP8 ON is specifically designed to be incorporated in Step–Down and Step–Up and Voltage–Inverting applications with a minimum number of external components.
Parametrics
MC34063A SOP8 DIP8 ON absolute maximum ratings: (1)Power Supply Voltage : 40 Vdc; (2)Comparator Input Voltage Range : –0.3 to +40 Vdc; (3)Switch Collector Voltage : 40 Vdc; (4)Switch Emitter Voltage (VPin 1 = 40 V) : 40 Vdc; (5)Switch Collector to Emitter Voltage : 40 Vdc; (6)Driver Collector Voltage : 40 Vdc; (7)Driver Collector Current : 100 mA; (8)Switch Current : 1.5 A; (9)Operating Junction Temperature : +150 ℃; (10)Operating Ambient Temperature Range : 0 to +70℃; (21)Storage Temperature Range : –65 to +150 ℃.
Features
MC34063A SOP8 DIP8 ON features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference.

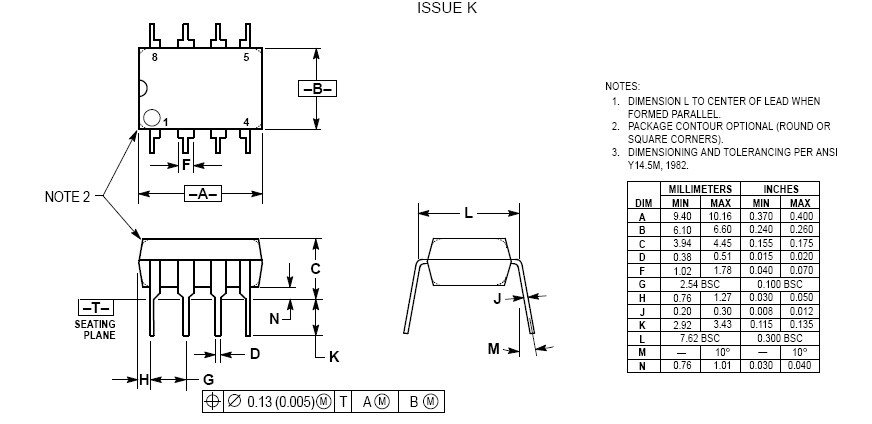

Diagrams
