Product Summary

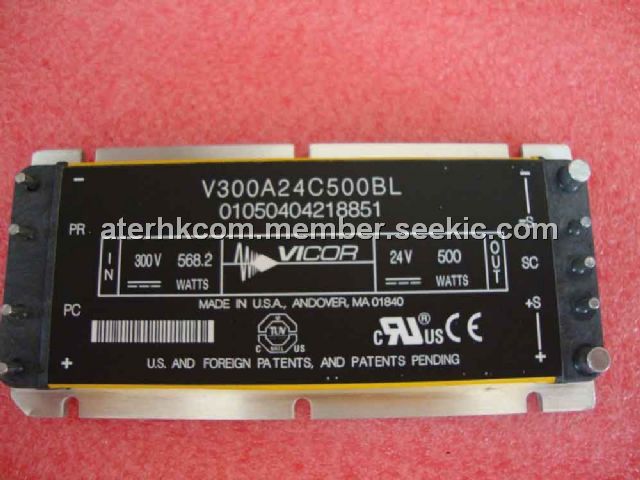

The V300A24C500B is a DC-DC converter module. It uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. Its typical applications are off-line systems, distributed power and electric vehicles.
Parametrics
Absolute maximum ratings: (1)+In to –In voltage: -0.5 to +375 Vdc; (2)+In to –In voltage: 400 Vdc <100ms; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +31.7 Vdc; (6)+Sense to –Out voltage: -0.5 to +31.7 Vdc; (7)–Sense to –Out voltage: 1.0 Vdc; (8)SC to –Out voltage: -0.5 to +1.5 Vdc; (9)Isolation voltage (in to out): 3000 Vrms; (10)Isolation voltage (in to base): 1550 Vrms; (11)Isolation voltage (out to base): 500 Vrms; (12)Storage temperature (C–Grade): -40 to +125 ℃; (13)Operating temperature (C–Grade): -20 to +100 ℃; notes: Baseplate; (14)Pin soldering temperature: 500 (260) °F (℃) notes: <5 sec, wave solder; (15)Pin soldering temperature: 750 (390) °F (℃) notes: <7 sec, hand solder; (16)Mounting torque: 5 (0.57) in-lbs (N-m) notes: 6 each, # 4-40 or M3.
Features
Features: (1)DC input range: 180 - 375V; (2)Input surge withstand: 400V for 100ms; (3)DC output: 24V; (4)Programmable output: 10 to 110%; (5)Regulation: ±3.3% no load to full load; (6)Efficiency: 89%; (7)Maximum operating temperature:100℃ at full load; (8)Power density: 99W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.

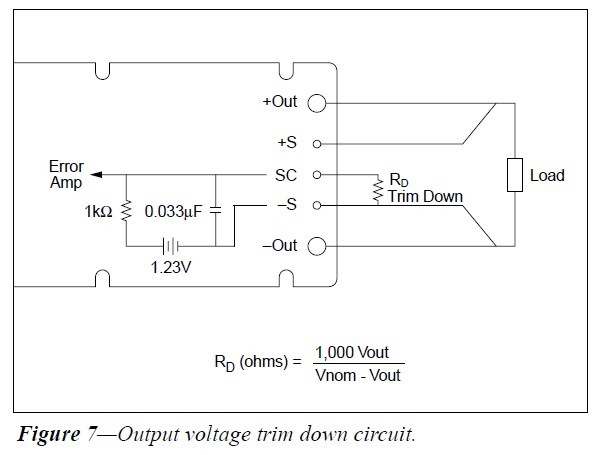

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 V300A24C500B |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500B2 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500B3 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500BF |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500BF2 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500BF3 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500BG |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
|
V300A24C500BG2 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||
