Product Summary

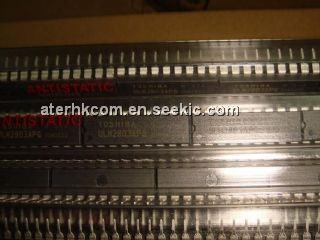

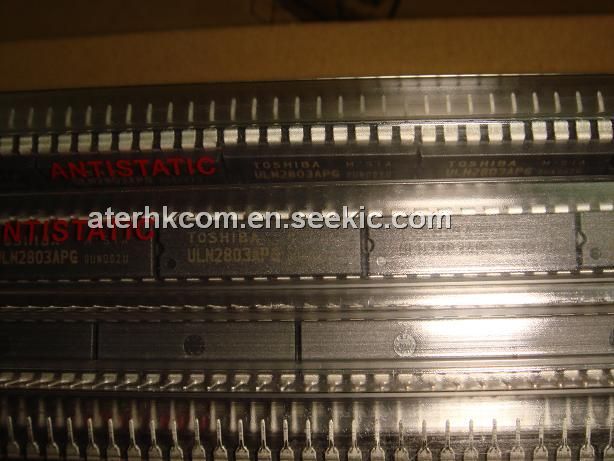

The ULN2803APG is a Silicon Monolithic. The ULN2803APG is high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs.

Parametrics

ULN2803APG absolute maximum ratings: (1)Output sustaining voltage : 0.5 to 50 V; (2)Output current : 500 mA/ch; (3)Input voltage : 0.5 to 30 V; (4)Clamp diode reverse voltage : 50 V; (5)Clamp diode forward current : 500 mA; (6)Power dissipation : 1.47W; (7)Operating temperature : 40 to 85 ℃; (8)Storage temperature : 55 to 150 ℃.

Features

ULN2803APG features: (1)Output current (single output) 500 mA (Max.); (2)High sustaining voltage output 50 V (Min.); (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package Type-APG : DIP-18pin; (6)Package Type-AFWG : SOL-18pin.

Diagrams

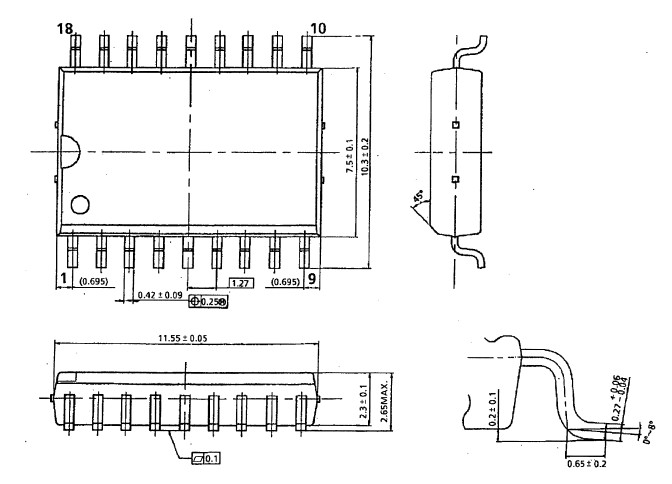

ULN2803APG dimension
