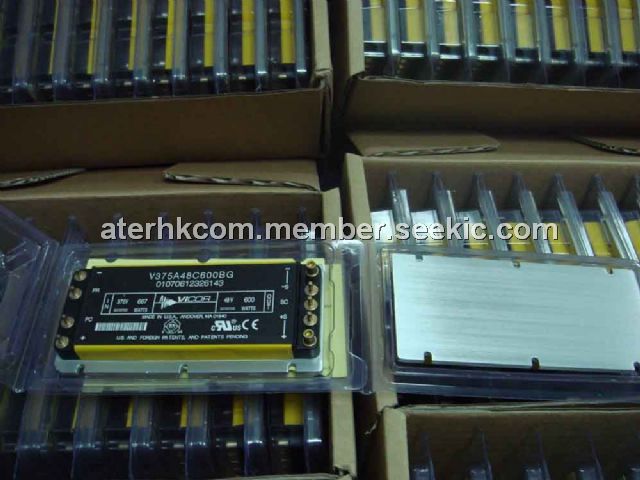

V375A48C600B

DC-DC converter, module, 2nd Generation power processing

Rated 5 Rating 5 | reviews | Write a review

Price:: US $150.00~250.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $150.00~250.00

PartNumber:: V375A48C600B

Brand:: Vicor Corporation - Vicor | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-25

From Other Seller

Part Number:V375A48C600B
US $150.00 - 250.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The V375A48C600B is a DC-DC converter module. This module uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. For example, a plated-cavity core transformer couples widely separated primary and secondary windings, resulting in low in-toout parasitic capacitance and noise. High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management provide high power density with low temperature gradients. Extensive use of silicon integration results in 1/3 the part count of a 1st Generation converter.

Parametrics

Absolute maximum ratings: (1)+In to -In voltage: -0.5 to +425Vdc; (2)+In to -In voltage: 500Vdc; (3)PC to -In voltage: -0.5 to +7.0Vdc; (4)PR to -In voltage: -0.5 to +7.0Vdc; (5)+Out to -Out voltage: -0.5 to +62.9Vdc; (6)+Sense to -Out voltage: -0.5 to +62.9Vdc; (7)-Sense to -Out voltage: 1.0Vdc; (8)SC to -Out voltage: -0.5 to +1.5Vdc; (9)Isolation voltage (in to out): 3000Vrms; (10)Isolation voltage (in to base): 1550Vrms; (11)Isolation voltage (out to base): 500 Vrms; (12)Storage temperature (C-Grade): -40 to +125℃; (13)Operating temperature (C-Grade): -20 to +100℃; (14)Pin soldering temperature: 500(260)°F(℃); (15)Pin soldering temperature: 750(390)°F(℃); (16)Mounting torque: 5(0.57)in-lbs (N-m).

Features

Features: (1)DC input range: 250 to 425V; (2)Input surge withstand: 500V for 100ms; (3)DC output: 48V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.25% no load to full load; (6)Efficiency: 88.5%; (7)Maximum operating temperature:100℃ at full load; (8)Power density: 118W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.
