Product Summary
The EKMH201VSN471MQ30S is a aluminum electrolytic capacitor with non solvent-proof type and Pb-free design.
Parametrics
Specifications: (1)Category Temperature Range: -40 to +105℃ (6.3 to 100Vdc), -25 to 105C (160 to 450Vdc); (2)Rated Voltage Range: 6.3 to 450Vdc; (3)Capacitance Tolerance: ±20% (M) (at 20℃, 120Hz); (4)Leakage Current: I=0.02CV or 3mA, whichever is smaller Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)(at 20℃ after 5 minutes); (5)Endurance: Capacitance change: ≤20% of the initial value; D.F. (tanδ): ≤200% of the initial specified value; leakage current: ≤The initial specified value; (6)Shelf Life: Capacitance change: ≤20% of the initial value; D.F. (tanδ): ≤150% of the initial specified value; leakage current: ≤The initial specified value.
Features
Features: (1)Endurance with ripple current : 105C 2,000 hours; (2)Non solvent-proof type; (3)Pb-free design.

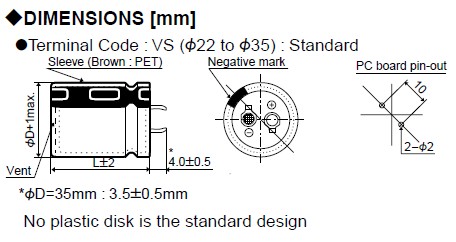

Diagrams
 |
