Product Summary
The V300A24C500BL is a DC-DC Converter Module. It is suitable for off-line systems, distributed power and electric vehicles.
Parametrics
Absolute maximum ratings: (1)+In to –In voltage -0.5 to +375 Vdc; (2)+In to –In voltage: 400 Vdc <100ms; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +31.7 Vdc; (6)+Sense to –Out voltage: -0.5 to +31.7 Vdc; (7)–Sense to –Out voltage: 1.0 Vdc; (8)SC to –Out voltage: -0.5 to +1.5 Vdc; (9)Isolation voltage (in to out): 3000 Vrms; (10)Isolation voltage (in to base): 1550 Vrms; (11)Isolation voltage (out to base): 500 Vrms.
Features
Features: (1)DC input range: 180 - 375V; (2)Input surge withstand: 400V for 100ms; (3)DC output: 24V; (4)Programmable output: 10 to 110%; (5)Efficiency: 89%; (6)Power density: 99W/cubic inch; (7)Height above board: 0.43 in. (10,9 mm); (8)Parallelable, with N+M fault tolerance; (9)Low noise ZCS/ZVS architecture.

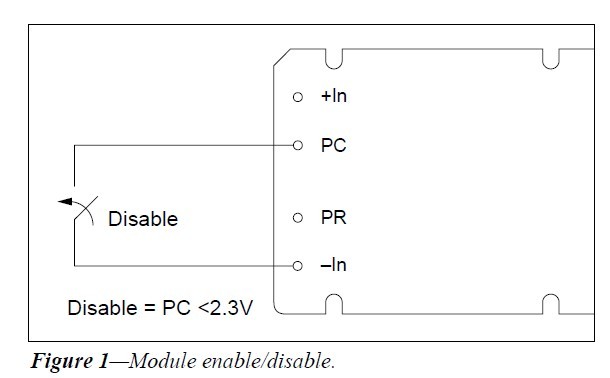

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 V300A24C500BL |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||||||
|
V300A24C500BL2 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||||||
|
V300A24C500BL3 |
|
CONVERTER MOD DC/DC 24V 500W |
Data Sheet |
|
|
||||||||||
